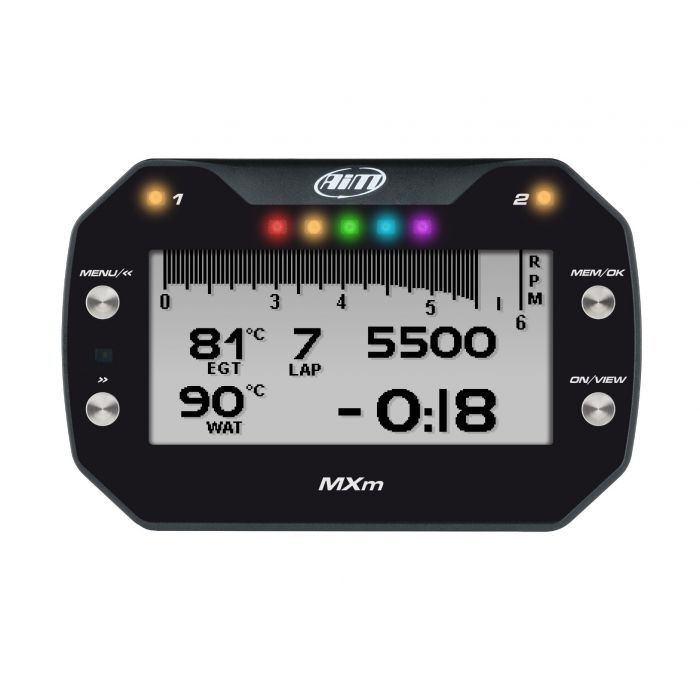

AIM MXM

MXm samples data coming from your ECU, the internal GPS, accelerometer and gyro, analog/digital inputs and predefined math channels.

Integrated Shift Lights and Alarms

The Aim MXm features a 5 LED shift light array. Choose from a host of advanced multi-coloured RGB shift light patterns that can be customised to your liking, and for each unique gear when required. MXm also features two fully configurable RGB alarm LED’s which you can choose the conditions which turn them on/off, their colour, select a solid alarm – or flashing one – and the flashing frequency. MXm features a high contrast LCD display, with an outstanding black to white ratio. The screen can be backlit in one of the seven available colours and the incorporated light sensor makes brightness and contrast ideal in all light conditions.

Data Recall:

At the end of each session, you can recall the summary of your best laps, with max/min RPM, speed and temperatures.

Choose Your Own Data Layout:

With the Aim MXm Dash, you can organize this huge quantity of data defining your custom pages, choosing among a wide library of page styles, defining which data to be shown, their end of scale and measure unit.

Wi-Fi Connectivity:

Makes it even more convenient to configure, calibrate, and download your data wirelessly, using a secure 802.11 WiFi connection so no need to move your PC close to the vehicle anymore, you can do it from your van up to 50 meters away.

In The Box:

MXm,

GPS Module with cable,

USB cable,

37 pins standard harness,

Race Studio 3 software.

Technical Specs:

Display resolution : 268 x 128 pixels

Backlight : 7 configurable RGB colors

Ambient light sensor : Yes Shift lights : 5 configurable RGB LEDs

Alarm LEDs : 2 configurable RGB LEDs

CAN connections : 2

ECU connections : CAN, RS232 or K-Line ECU compatibility : +1,000 industry leading ECUs GPS : Integrated

External modules : Channel Expansion, Thermocouple Expansion, Lambda Controller, SmartyCam HD

Analog inputs : 4 fully configurable, max 1,000 Hz each

Digital inputs : 2 speed inputs, coil RPM input

Digital outputs : 2 high-side

Inertial platform : Internal 3 axis ±5G accelerometer + 3 axis gyro+ 3 axis magnetometer

Wi-Fi connection : Yes

Internal memory : 4 GB

Body : Glass fiber reinforced Nylon

Pushbuttons : Metallic

Connectors : 37 pins Motorsport connector + 4 pins power connector

Dimensions : 137×88.4×31.9 mm

Weight : 330 g

Waterproof : IP65
