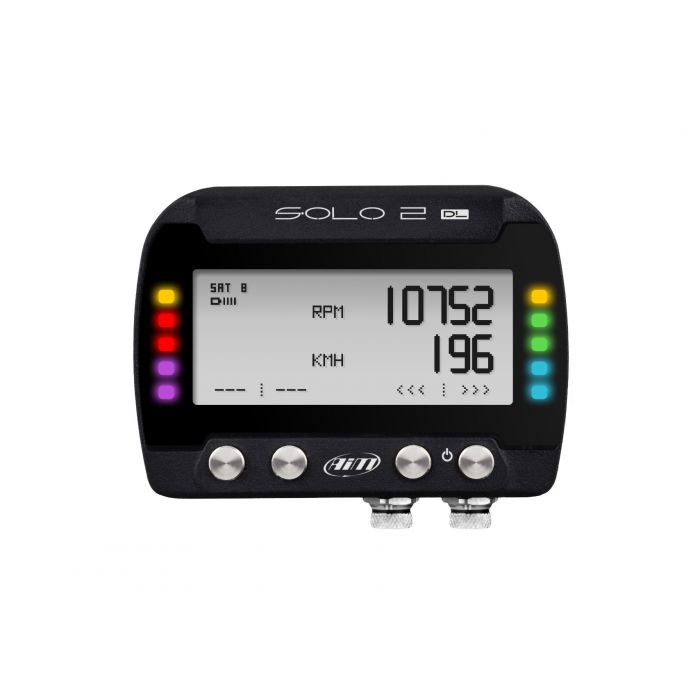

The new Aim Solo 2 track day racing lap timer receives the data from two satellites constellations, GPS and Glonass: this is a huge step forward since it is unbelievably faster and more precise than the previous version. The power ON requires only a few seconds and the lap times are calculated with a max 2/100 sec of tolerance. Aim Solo 2 relies on a database of more than 2,000 tracks all over the world. As soon as it switches on, the Solo 2 identifies its position, recognises the starting line coordinates of the track and starts sampling lap times. In the event that the track is not in the database, it’s no problem. The Aim Solo 2 realises it and switches to learning mode, automatically understands the characteristics of the track and gives the lap time anyway. Wi-Fi connection is easy and fast without connectors or cables. Simply the best way to configure your Solo 2, to manage the track database and to download the data to your PC.
The Solo 2 DL Version There is more than 1,000 protocols for over 1,000 ECU’s in the database to allow the Solo 2 DL easy connection to your Engine Control Unit providing you a lot of information with just one cable. Where your ECU protocol is not in the database, an ECU Driver Builder is always available in the Race Studio 3 configuration software which you will be able to create your protocol by yourself.
Coil RPM input Solo 2 DL now features a digital input allowing to log RPM either from square wave signals (8-50 V each signal) or pulse signals (150-450 V ignition coil trigger – primary circuit).
Technical Specs
Display : Graphical Display resolution : 238×99 pixels
Display pages : Up to 5 freely configurable
Backlight : 7 configurable RGB colors Shift lights/alarm
LEDs : 10 configurable RGB LEDs
Integrated track database : Yes
Inertial platform : Internal 3 axis ±5G accelerometer + 3 axis gyro + 3 axis magnetometer
Wi-Fi connection : Yes
GPS : 10 Hz External power : 12 V
Memory : 4 GB
Battery type : Rechargeable Lithium
Pushbuttons : Metallic Dimensions : 98.0×73.7×30.2 mm
Weight : 240 g, battery included
Waterproof : IP67
Solo 2 DL ECU connection : CAN, RS232 or K-Line to 1,000 + industry leading ECUs
| MANUFACTURER | AIM |
|---|
